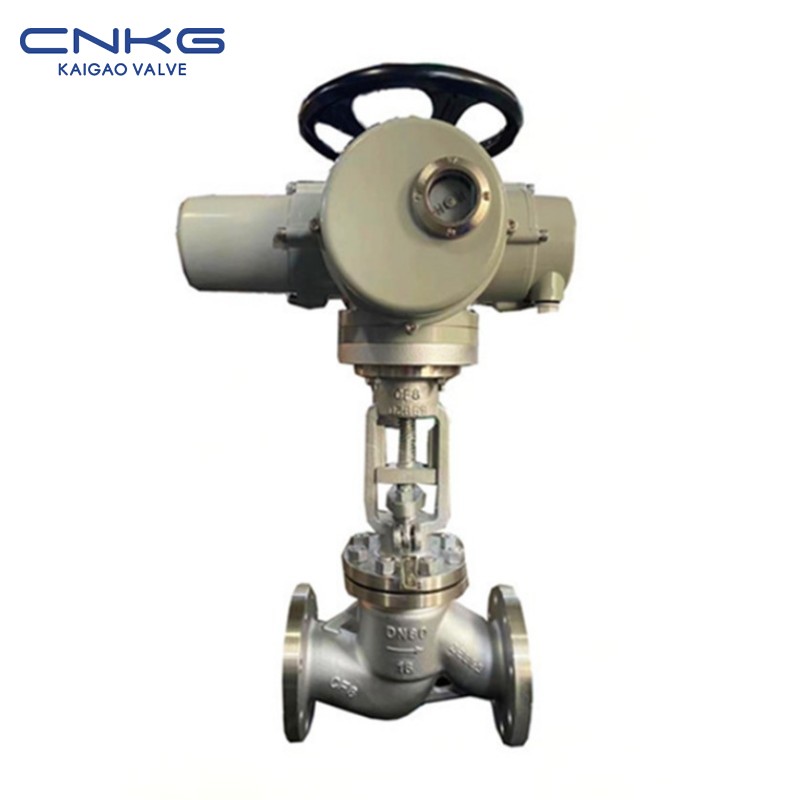

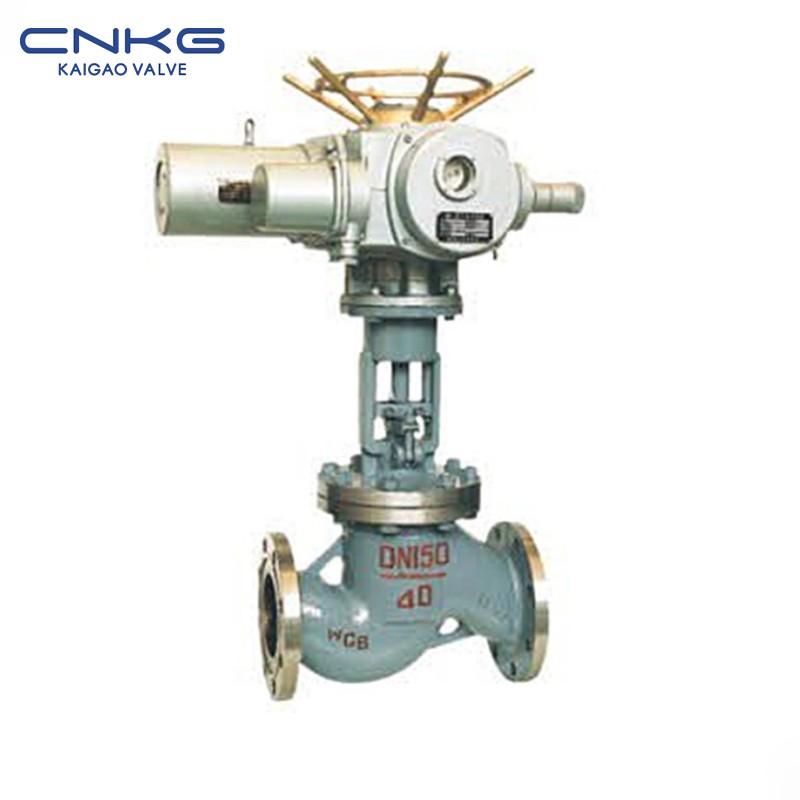

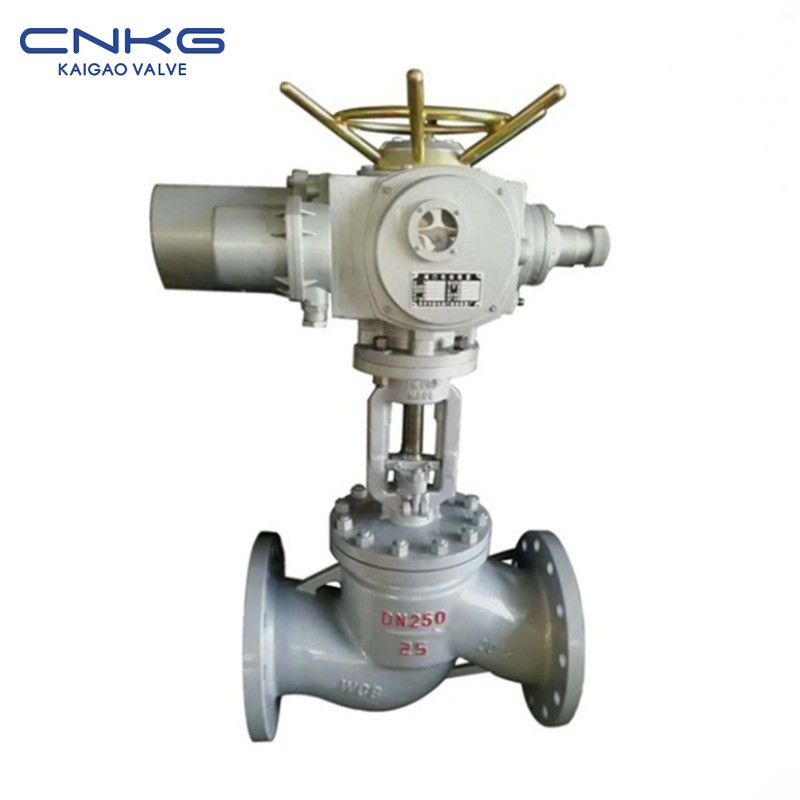

Globo Balbula Elektrikoa

Jarri gurekin harremanetan

produktuaren xehetasunak

Globo Balbula Elektrikoen Zehaztapenak

Presio nominala:	1.6 / 2.5 / 4.0 / 6.3 Mpa
Indar proba:	PT2.4 / 3.75 / 6.0 / 9.45 Mpa
Zigilu proba:	1,76 / 2,75 / 4,4 / 6,93 Mpa
Zigiluaren proba:	1,76 / 2,75 / 4,4 / 6,93 Mpa
Gas zigiluaren proba:	0,6Mpa
Balbularen gorputzaren materiala:	WCB(C) / CF8 (P) / CF3 (PL) / CF8M (R) / CF3M (RL)
Egokia den bitartekoa:	ura / lurruna / petrolio produktuak / azido nitrikoa / azido azetikoa
Tenperatura egokia:	-29℃-180℃

Mota	DN	PN1.6MPa									pisua (kg) ≈

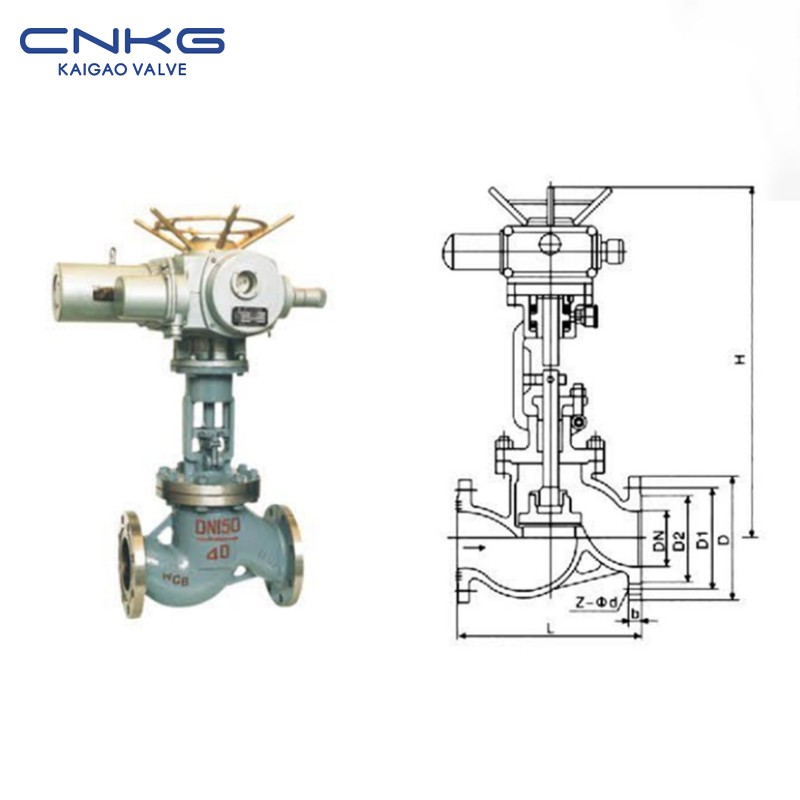

Mota	DN	L	D	D1	D2	D6	b	Z-Φd	H	D0	J41	J941
J41H-40 J41Y-40 J41Y-160P J41Y-160R J41Y-160I J941H-160 J941Y-160 J941Y-160P J941Y-160R J941Y-160I	15	170	110	75	52	40	24	4-Φ18	148	140	5	6
	20	190	130	90	65	51	26	4-Φ23	156	160	8	7
	25	210	140	100	72	58	28	4-Φ23	125	180	10	19
	32	230	165	115	85	66	30	4-Φ25	200	200	12	25
	40	260	175	125	92	76	32	4-Φ27	231	240	15	33
	50	300	215	165	132	88	36	8-Φ25	262	250	30	45
	65	340	245	190	152	110	44	8-Φ30	303	320	65	65
	80	380	260	205	168	121	46	8-Φ30	341	400	83	83
	100	430	300	240	200	150	48	8-Φ34	485	450	125	142
Mota	DN	PN6.4MPa									pisua (kg) ≈
Mota	DN	L	D	D1	D2	D6	b	Z-Φd	H	D0	pisua (kg) ≈
J41H-100 J41Y-100 J41Y-100P J41Y-100R J41Y-100I J941H-100 J941Y-100 J941Y-100P J941Y-100R J941Y-100I	15	170	105	75	55	40	20	4-Φ14	202	140	11
	20	190	125	90	68	51	22	4-Φ18	228	160	14
	25	210	135	100	78	58	24	4-Φ18	250	180	17
	32	230	150	110	82	66	24	4-Φ23	326	220	22
	40	260	165	125	95	76	26	4-Φ23	359	240	29
	50	300	195	145	112	88	28	4-Φ25	414	280	39
	65	340	220	170	138	110	32	8-Φ25	434	320	54
	80	380	230	180	148	121	34	8-Φ25	547	400	75
	100	430	265	210	172	150	38	8-Φ30	621	450	125
	125	500	310	250	210	176	42	8-Φ34	732	450	266
	150	550	350	290	250	204	46	12-Φ34	840	500	310
	200	650	430	360	312	260	54	12-Φ41	925	550	590
